96 Fibre Dome Enclosure 2 Inlets 2 Outlets
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 96 Fibers Horizontal Outdoor Aerial Dome 2 Inlets 2 Outlets Fiber Optical Splice Closure | Model Number | FS-J-012 |
|---|---|---|---|
| Brand Name | Focus Infra Or OEM | Protection Level | IP 65 |
| Cable Port | 2 Inlets 2 Outlets | Scope Of Application | 12 Core To 96 Core |
| Product Size | 450*170*100mm | Gross Weight | 1.3 Kg |
| Main Material | ABS | Ambient Temperature | - 40 °C ~ + 60 °C |
| High Light | 96 fibre dome enclosure,fibre dome enclosure 2 Inlets,joint closure fiber optic 2 Outlets |
||
Product Description

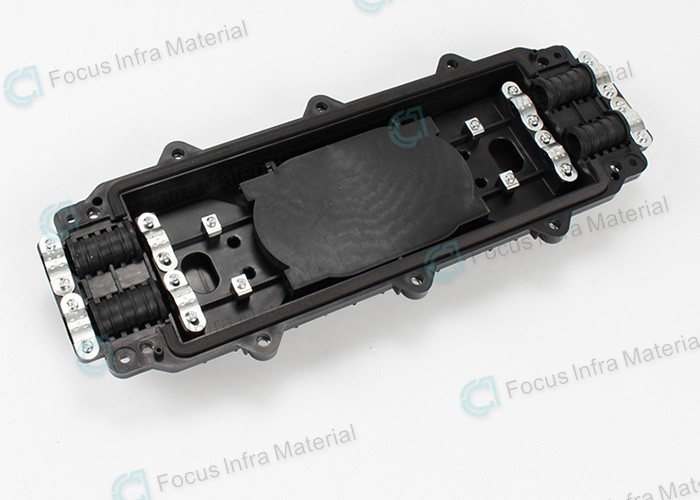

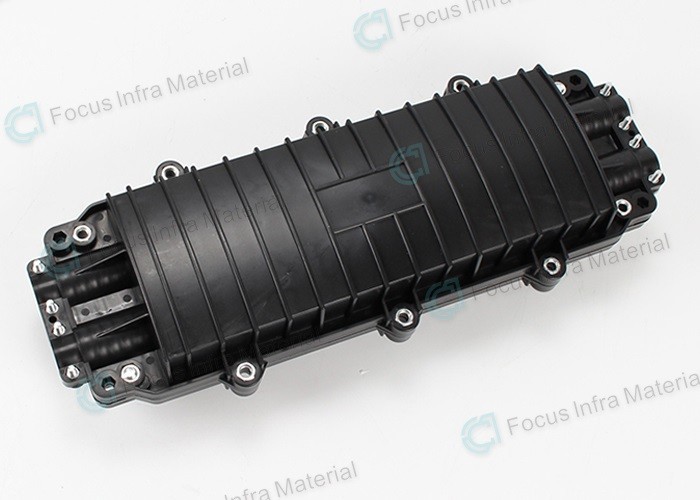

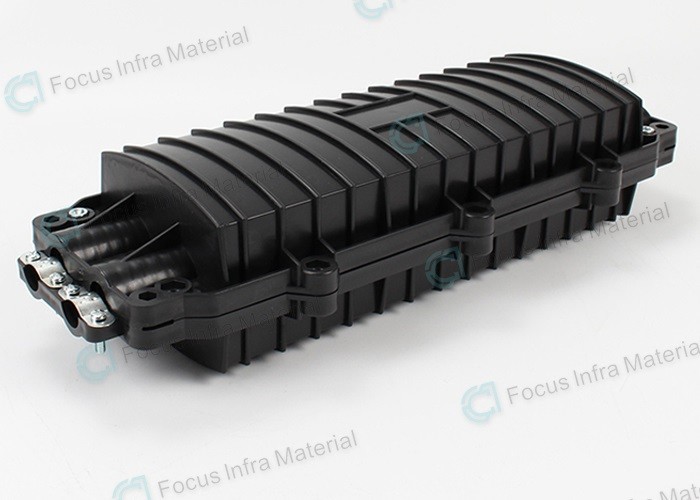

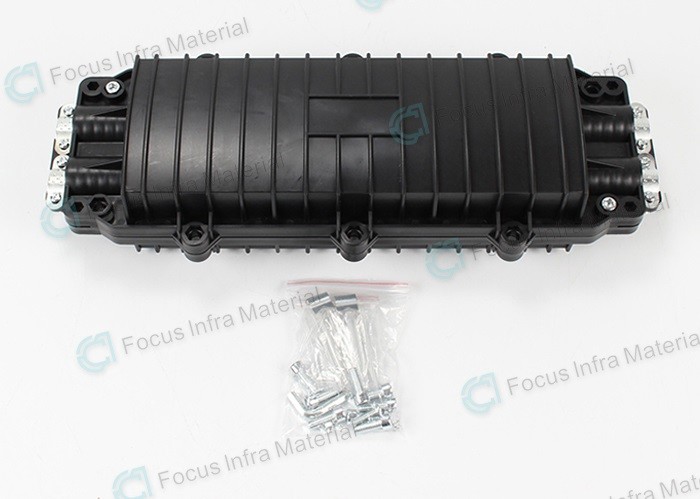

96 Fibers Horizontal Outdoor Aerial Dome 2 Inlets 2 Outlets Fiber Optical Splice Closure
Description:
96 Fibers Horizontal Outdoor Aerial Dome 2 Inlets 2 Outlets Fiber Optical Splice Closure, also known as 96 Fibers Horizontal Outdoor Aerial Dome 2 Inlets 2 Outlets Fiber Optical Splice Closure, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. 96 Fibers Horizontal Outdoor Aerial Dome 2 Inlets 2 Outlets Fiber Optical Splice Closure are widely apply for the connecting of optical cable. It Suitable for straight-through, diverging and connection of FTTH, FTTB all kinds of optical communication passive network.
Features:
Ageing resistance & ultraviolet radiation resistance
Advanced internal structure design
The closure is spacious enough for winding and storing fibers
Widely used in communication, network system, CATV cable TV, optical cable network system
Specification:
| Product name | Horizontal Type Vertical Fiber Optic Splice Box |
| Protection level | IP65 |
| Scope of application | 12 core to 96 core |
| Gross weight | 1.3 kg |
| Main material | ABS |
| Scope of use | Outdoor Aerial Dome,Buried,pole mount type outdoor |
| Ambient temperature | - 40 °C ~ + 60 °C |
| Service life | ≥20 years |
| Application scope | FTTH FTTB FTTX Network |
| Atmospheric pressure | 70kPa~106kPa |
| Insulation resistance | >2*10MΩ/500V(pc) |
| Tensile strength | >1200N |
