IP68 Fiber Optic Splice Closure Vertical Pipeline Fiber Joint Box 400*200mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Plastic Dome Type Vertical Pipeline Buried Duct Mounting 96 Core Fiber Optic Splicing Closure | Model Number | FS-J-007 |
|---|---|---|---|
| Brand Name | Focus Infra Or OEM | Protection Level | IP 68 |
| Cable Port | 2 Inlets 2 Outlets | Scope Of Application | 12 Core To 96 Core |
| Product Size | 400*200mm | Gross Weight | 2.25 Kg |
| Main Material | PC | Ambient Temperature | - 40 °C ~ + 60 °C |
| High Light | IP68 Fiber Optic Splice Closure,Vertical Pipeline fiber joint box,fiber joint box 400*200mm |
||
Product Description

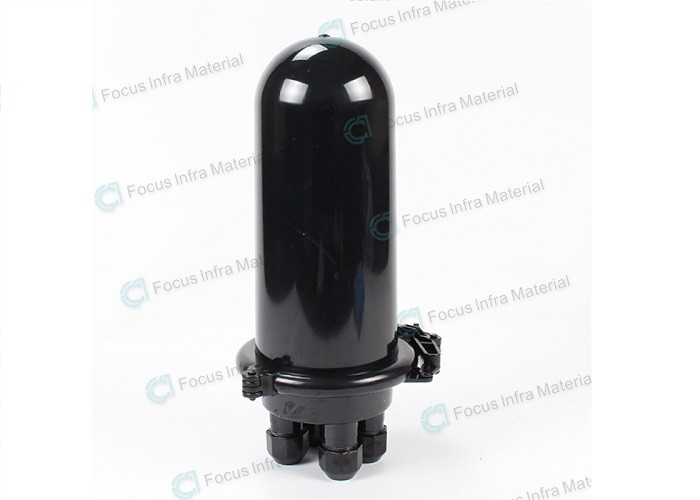

Plastic Dome Type Vertical Pipeline Buried Duct Mounting 96 Core Fiber Optic Splicing Closure
Description:
Plastic Dome Type Vertical Pipeline Buried Duct Mounting 96 Core Fiber Optic Splicing Closure, also known as Plastic Dome Type Vertical Pipeline Buried Duct Mounting 96 Core Fiber Optic Splicing Joint Box, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has excellent mechanical strength.
Features:
Ageing resistance & ultraviolet radiation resistance

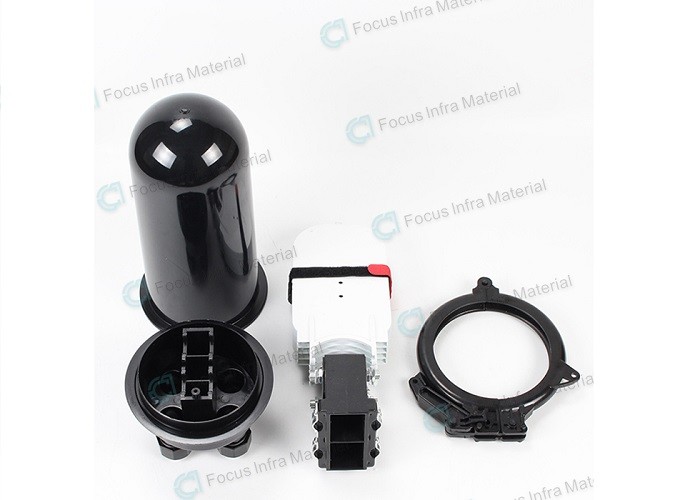

Advanced internal structure design
Easy and fast to fix fiber cable
The closure is spacious enough for winding and storing fibers
Close device: no need special tools for easy installation and re open

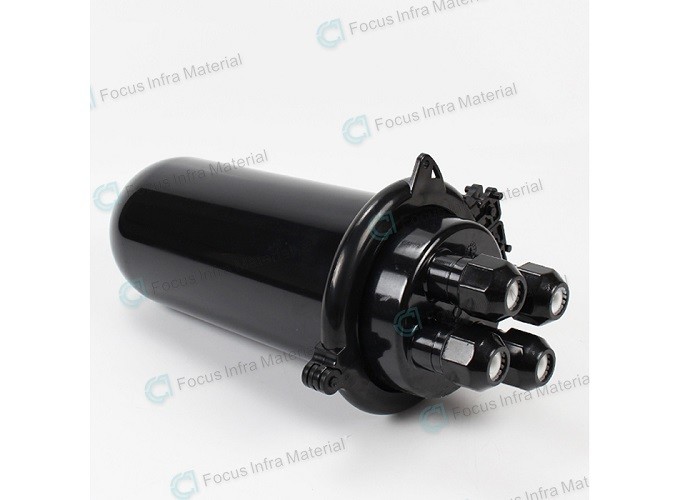

Grouping function: 2 inlet 2 outlet can meet most requirements

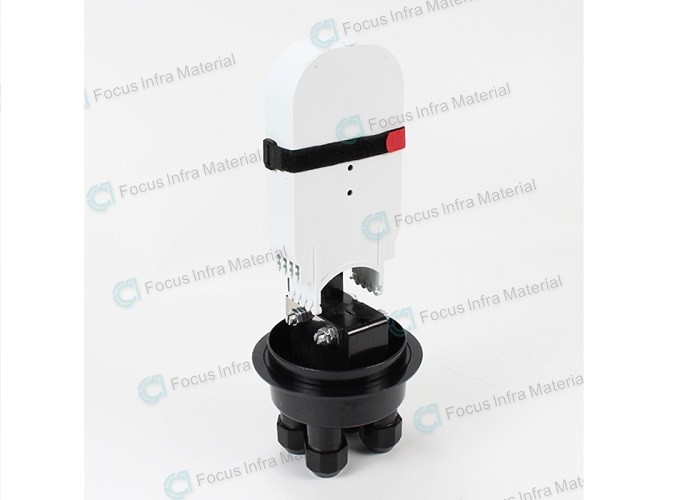

Splice tray: using cascading structure, no need to take other splice tray when do operation
Application
Aerial, underground, wall-mounted, pole-mounted, duct-mounted.
Specification:
| Product name | Dome Type Vertical Fiber Optic Splice Box |
| Protection level | IP68 |
| Scope of application | 12 core to 96 core |
| Gross weight | 2.25 kg |
| Main material | PC |
| Scope of use | Outdoor Aerial Dome,Buried,pole mount type outdoor |
| Ambient temperature | - 40 °C ~ + 60 °C |
| Service life | ≥20 years |
| Application scope | FTTH FTTB FTTX Network |
| Atmospheric pressure | 70kPa~106kPa |
| Insulation resistance | >2*10MΩ/500V(pc) |
| Tensile strength | >1200N |
