PC 144 Core Fiber Optic Splicing Closure Box 2 Inlets 2 Outlets
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 2 Inlets 2 Outlets Outdoor Horizontal Type 144 Core Fiber Optical Splice Enclosure Box | Model Number | FS-J-005 |
|---|---|---|---|
| Brand Name | Focus Infra Or OEM | Protection Level | IP 68 |
| Cable Port | 2 Inlets 2 Outlets | Scope Of Application | 12 Core To 144 Core |
| Product Size | 645*220*165mm | Gross Weight | 5.7 Kg |
| Main Material | PC | Ambient Temperature | - 40 °C ~ + 60 °C |
| High Light | 144 Core fiber enclosure box,144 Core fiber optic splicing closure,PC fiber optic splicing closure |
||
Product Description

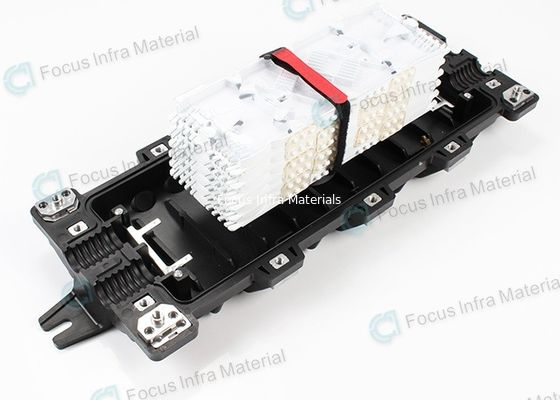

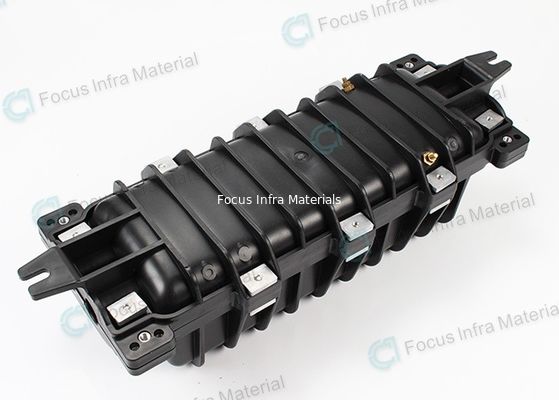

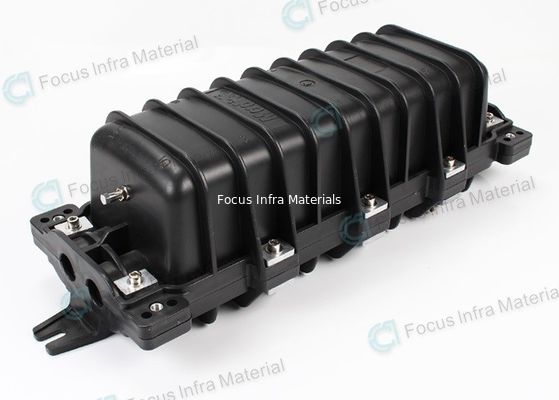

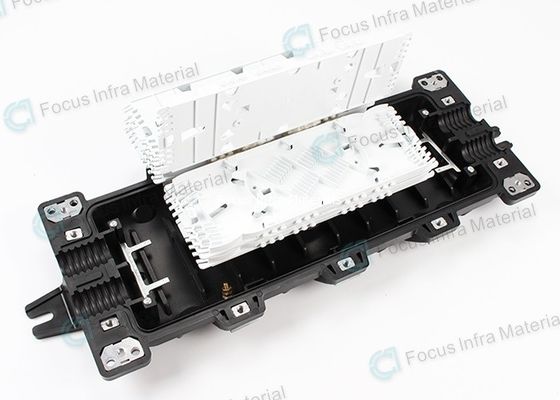

2 Inlets 2 Outlets Outdoor Horizontal Type 144 Core Fiber Optical Splice Enclosure Box
Description:
2 Inlets 2 Outlets Outdoor Horizontal Type 144 Core Fiber Optical Splice Enclosure Box, also known as 2 Inlets 2 Outlets Outdoor Horizontal Type 144 Core Fiber Optical Splice Joint Box, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has excellent mechanical strength. The solid shell and main structure of optical cable junction box can endure the worst environmental changes, and play a flame retardant role at the same time. Waterproof effect, so that vibration, impact, cable tension, twist and so on are protected.
Applications:
Used for direct transmission of outdoor cable in aerial,
Duct and direct buried application
Used for branching connection and protect the joint
Specification:
| Product name | Horizontal Type Vertical Fiber Optic Splice Box |
| Protection level | IP68 |
| Scope of application | 12 core to 144 core |
| Gross weight | 5.7 kg |
| Main material | PC |
| Scope of use | Outdoor Aerial Dome,Buried,pole mount type outdoor |
| Ambient temperature | - 40 °C ~ + 60 °C |
| Service life | ≥20 years |
| Application scope | FTTH FTTB FTTX Network |
| Atmospheric pressure | 70kPa~106kPa |
| Insulation resistance | >2*10MΩ/500V(pc) |
| Tensile strength | >1200N |
