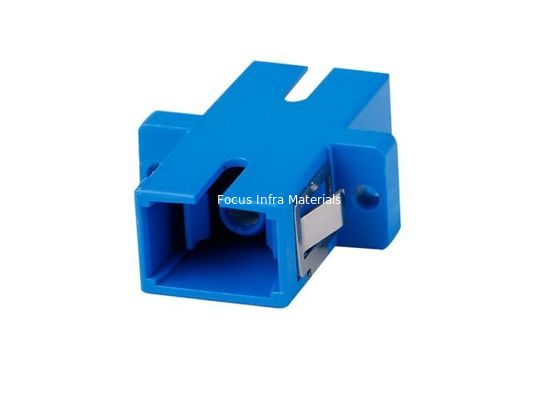

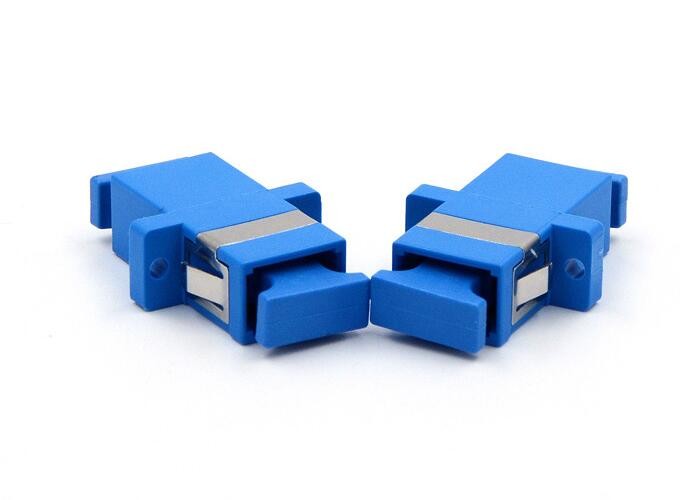

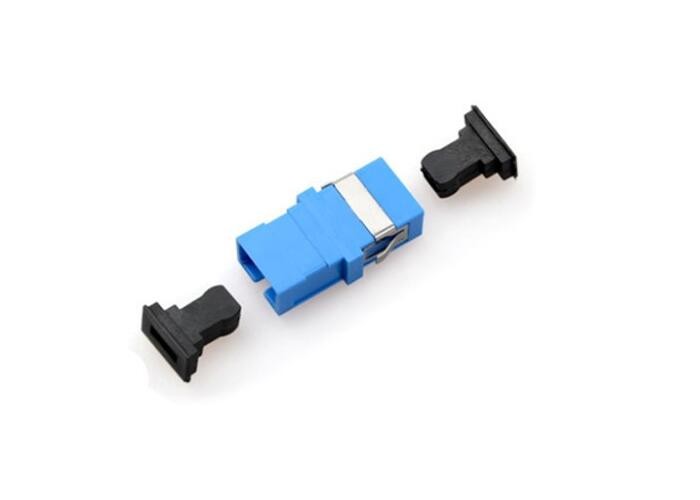

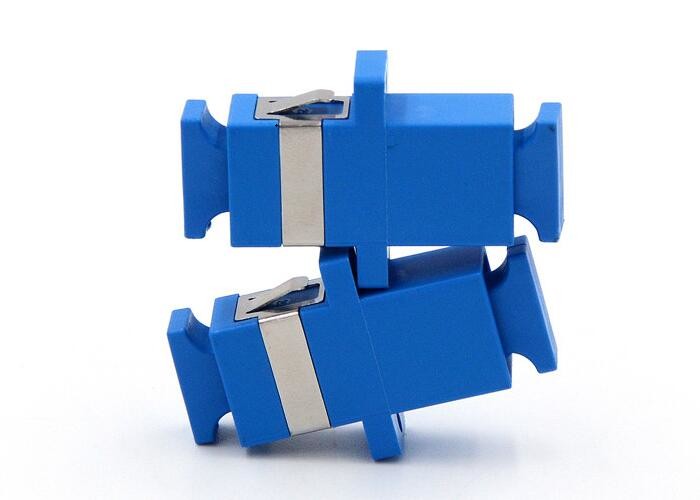

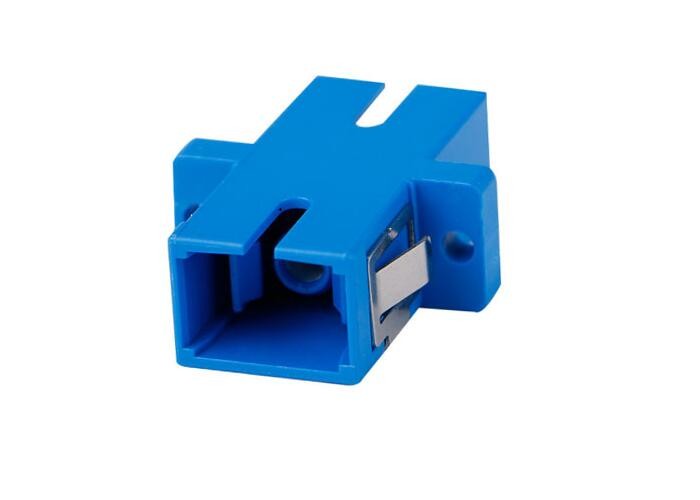

Focus Infra SM SX SC To SC Coupler

  • Focus Infra SM SX SC To SC Coupler
  • Focus Infra SM SX SC To SC Coupler
  • Focus Infra SM SX SC To SC Coupler
  • Focus Infra SM SX SC To SC Coupler
Place of Origin China
Brand Name Focus Infra or OEM
Model Number SC/ UPC
Minimum Order Quantity 500PCS
Price Negotiable
Packaging Details 50pcs/box
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Blue Color Simplex Single Mode SM SX Optical Connector Fiber Optic Adapter Brand Focus Infra Or OEM
Model Number Single Mode, SM Use FTTH, FTTX, FTTA, CATV, LANs
Insertion Loss <0.2db Return Loss >50db
Durability >1000 Matings Metal Clips With Metal Clips, Without Metal Clips
Flange With Flange，without Flange Application Fiber Connection
High Light

SM SX Fiber Optic Adapter

,

SM SX SC To SC Coupler

,

Blue SC To SC Coupler
Leave a Message
Product Description

Blue Color Simplex Single Mode SM SX Optical Connector Fiber Optic Adapter





Description:



Blue Color Simplex Single Mode SM SX Optical Connector Fiber Optic Adapter are designed for mounting in standard rectangular cut out style panels. Focus Infra also supply the metal housing SC fiber optic adapters. Most of these adapters come with ceramic sleeves, while there are bronze sleeve SC adapters which are generally multimode types.

When connecting two multimode fibers, you should always make sure they are the same core diameter (50/125 or 62.5/125). A mismatch here will cause attenuation in one direction (where the larger fiber is transmitting light into the smaller fiber). Focus Infra’s Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.





Features:



1. High size precision.
2. Good repeatability.
3. Good changeability.
4. Good temperature stabilization.
5. High wearable.





Specification:



Type Insertion loss(db) Tensility resist(g) Inser and pull times Temperature(℃)
FC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
SC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
ST < 0.2 200-600 1000 -40-+80
LC < 0.2 200-600 1000 -40-+80
MU < 0.2 200-600 1000 -40-+80
MIRJ < 0.2 200-600 1000 -40-+80
E-2000 < 0.2 200-600 1000 -40-+80
FC-SC < 0.2 200-600 1000 -40-+80
FC-ST < 0.3 200-600 1000 -40-+80
SC-ST < 0.2 200-600 1000 -40-+80

Focus Infra SM SX SC To SC Coupler 0Focus Infra SM SX SC To SC Coupler 1Focus Infra SM SX SC To SC Coupler 2Focus Infra SM SX SC To SC Coupler 3
