LC UPC OM3 Quad Fiber Optic Adapters Connectors With Flange

Place of Origin China
Brand Name Focus Infra or OEM
Model Number LC UPC
Minimum Order Quantity 500PCS
Price Negotiable
Packaging Details 50pcs/box
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name LC UPC OM3 Quad Blue Color Fiber Optic Adapter Fiber Optic Connector Brand Focus Infra Or OEM
Model Number Quad Use FTTH, FTTX, FTTA, CATV
Insertion Loss <0.2db Return Loss >50db
Durability >1000 Matings Color Blue
Flange With Flange,without Flange Application Fiber Connection
High Light

LC UPC adapter fiber optic


OM3 adapter fiber optic


OM3 fiber optic adapters connectors

Leave a Message
Product Description

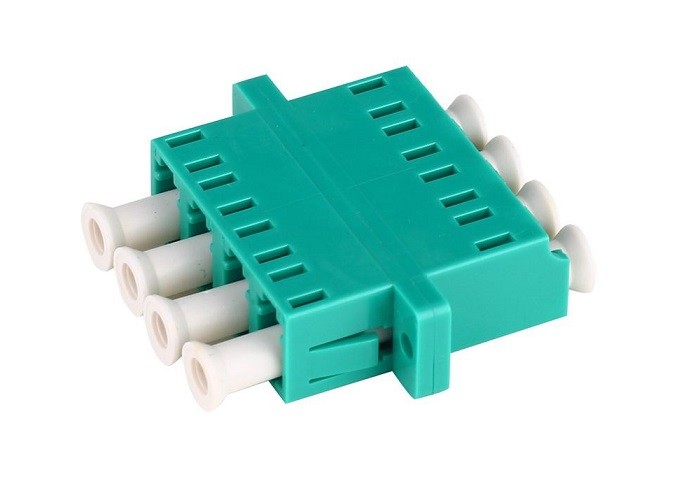

LC UPC OM3 Quad Blue Color Fiber Optic Adapter Fiber Optic Connector





  Optical fiber connectors are the most widely used optical passive components in optical fiber communication systems. Most optical fiber connectors are composed of three parts: two optical fiber connectors and a coupler. It is widely used in optical fiber distribution frames (ODF), optical fiber communication equipment, Instruments, etc., superior performance, stable and reliable. The optical fibers are connected by the adapter through the internal open sleeve to ensure the highest connection performance between the optical fiber connectors. In order to be fixed on various panels, a variety of fine fixing flanges are also designed.



  1. Standardization and Uniformization of Metal Casing
  2. Good repeatability, interchangeability and environmental stability
  3. Zirconia or Bronze Sleeve
  4. Precision mechanical dimension
  5. Low Insertion Loss, high Return loss
  6. Ferrule end surface pre-domed
  7. Precision anti-rotation key and corrosion resistant body
  8. UL-rated plastic housing
  9. Telcordia style boots
  10. Free-floating ceramic ferrule
  11. Zirconia sleeves or Phosphor bronze sleeves
  12. D-shaped easily installs into panel mount



  1. Equipment Test
  2. Local Area Network
  3. Optic instrumentation
  4. CATV system, Optic LAN
  5. Telecommunication Networks
  6. Fiber optic communication network
  7. Optical Broadband Access Network




Type Insertion loss(db) Tensility resist(g) Inser and pull times Temperature(℃)
FC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
SC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
ST < 0.2 200-600 1000 -40-+80
LC < 0.2 200-600 1000 -40-+80
MU < 0.2 200-600 1000 -40-+80
MIRJ < 0.2 200-600 1000 -40-+80
E-2000 < 0.2 200-600 1000 -40-+80
FC-SC < 0.2 200-600 1000 -40-+80
FC-ST < 0.3 200-600 1000 -40-+80
SC-ST < 0.2 200-600 1000 -40-+80
