SC UPC Single Mode Fiber Adapter With Flanges And Metal Clips
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SC UPC Single Mode Simplex With Flanges And Metal Clips Fiber Optic Adapter | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | Single Mode, SM | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | With Metal Clips |
| Flange | With Flange | Application | Fiber Connection |
| High Light | SC UPC adapter FTTH,SC UPC single mode fiber adapter,single mode fiber adapter FTTH |
||
Product Description

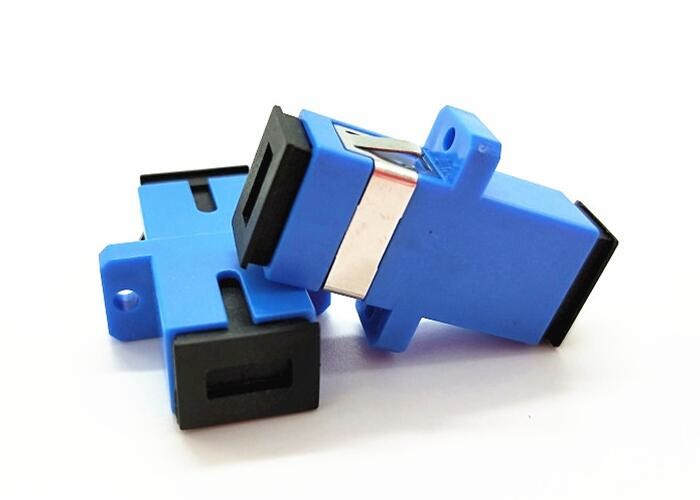

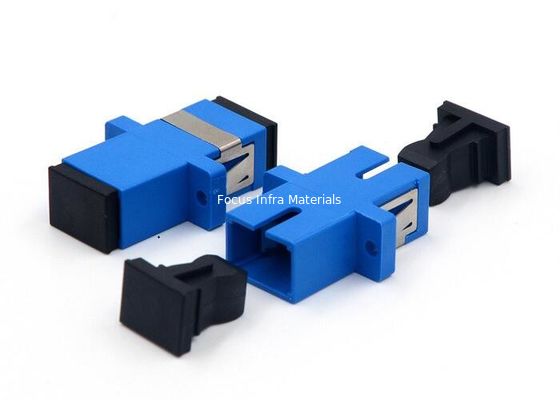

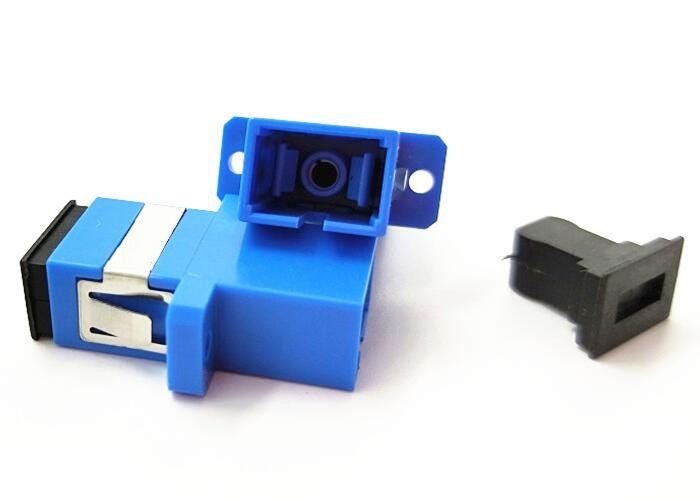

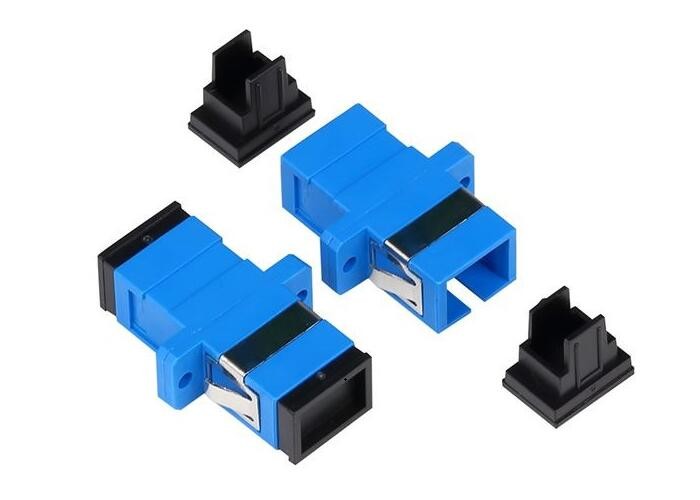

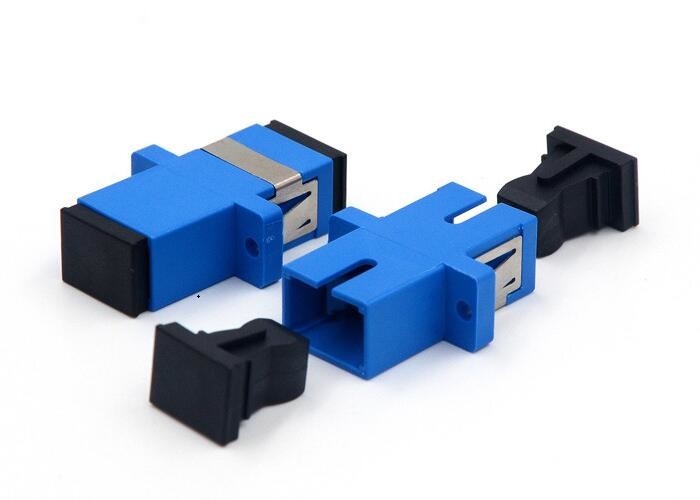

SC UPC Single Mode Simplex With Flanges and Metal Clips Fiber Optic Adapter
Description:
SC UPC Single Mode Simplex With Flanges and Metal Clips Fiber Optic Adapter is manufactured with Design of double layer structure, the upper layer is the optical splitter wiring layer, the lower layer is the fiber fusion layer. This design made SC UPC Single Mode Simplex With Flanges and Metal Clips Fiber Optic Adapter Easy to be operated. SC UPC Single Mode Simplex With Flanges and Metal Clips Fiber Optic Adapter is used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
