Singl Mode Fiber Optic Adapters Simplex SC UPC Connector
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Singl Mode Simplex SC UPC With Metal Clips Fiber Optic Adapter | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | Single Mode | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | With Metal Clips |
| Flange | With Flange | Application | Fiber Connection |
| High Light | Singl Mode Fiber Optic Adapters,Singl Mode sc upc connector,Simplex sc upc connector |
||
Product Description

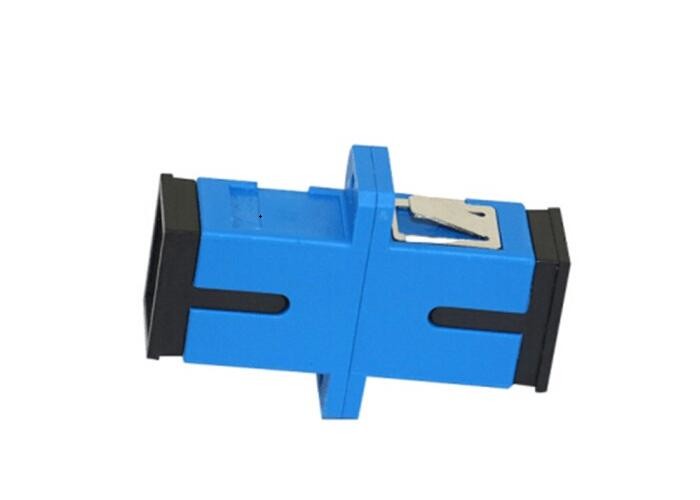

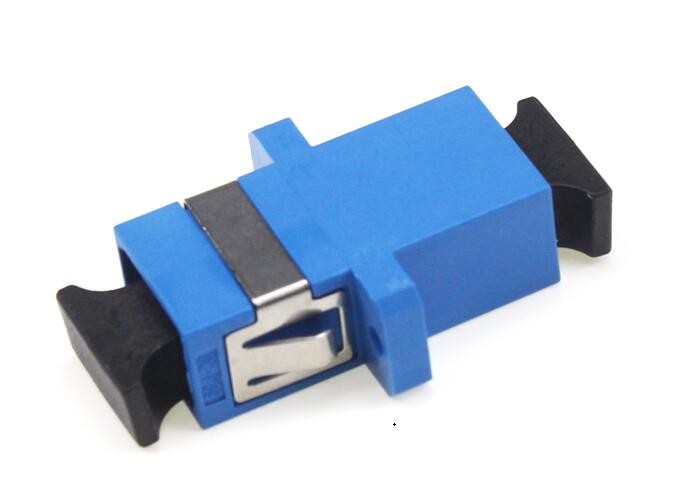

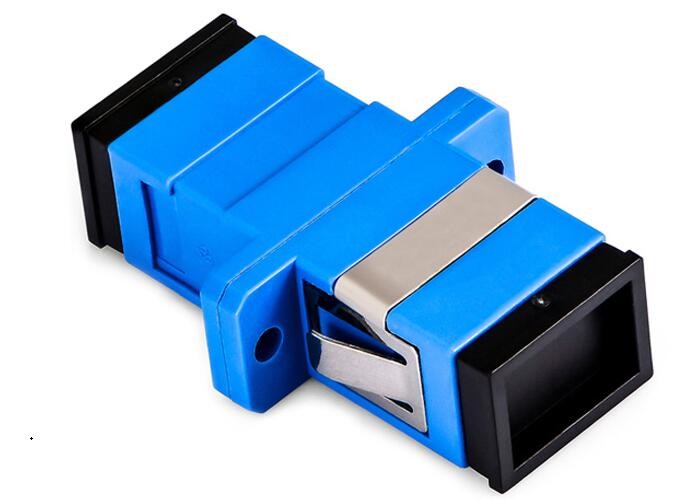

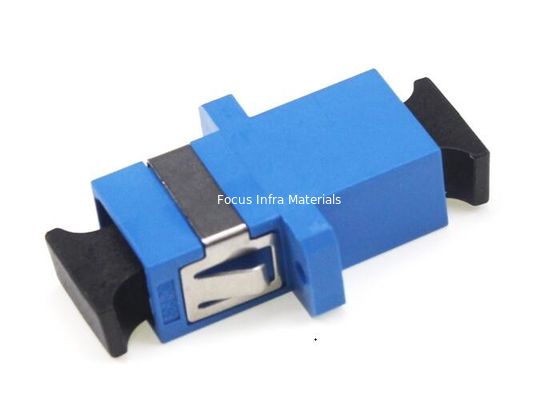

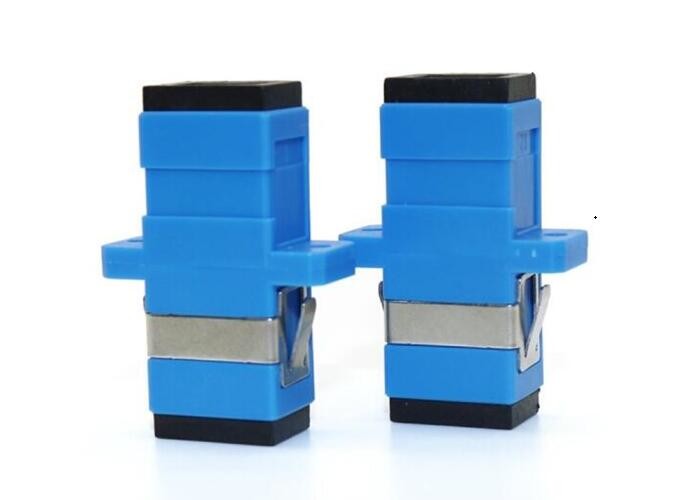

Singl Mode Simplex SC UPC With Metal Clips Fiber Optic Adapter
Description:
The Fiber Optic Adapter is a device for detachable (movable) connection between an optical fiber and an optical fiber. "APC" means polishing at an oblique 8 degree angle. The "APC" model is most commonly used in radio and television and early CATV. "PC" is the most widely used in telecom operators' equipment, and its joint cross-section is flat.
The "SC" connector is a standard square connector, using engineering plastics, which has the advantages of high temperature resistance and not easy to oxidize. The optical interface on the transmission equipment side generally uses an SC connector.
The optical fibers are connected by the adapter through the internal open sleeve to ensure the highest connection performance between the optical fiber connectors. In order to be fixed on various panels, a variety of fine fixing flanges are also designed.
Features:
Compact design
Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
High precision alignment
Low insertion and return loss and back reflection
Choice of metal or plastic housing, mount styles & flange options
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
