Green SM LC Fiber Optic Adapter SC APC Simplex 1000 Matings

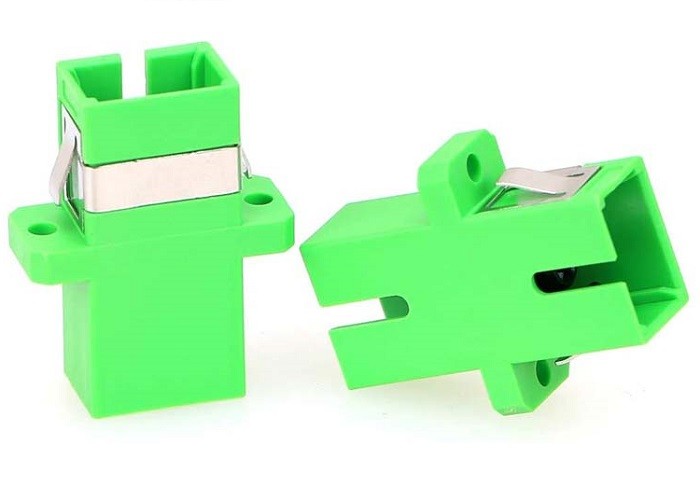

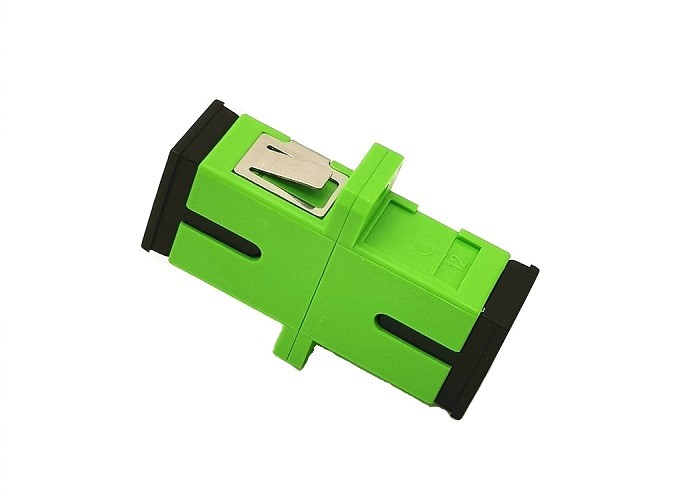

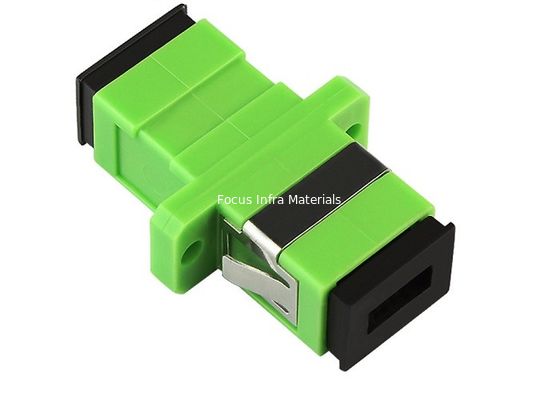

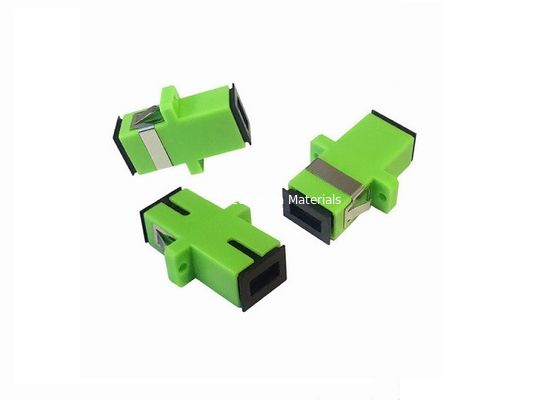

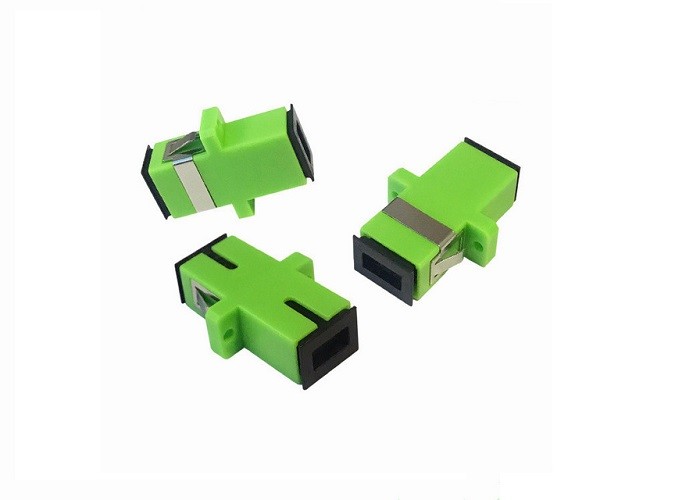

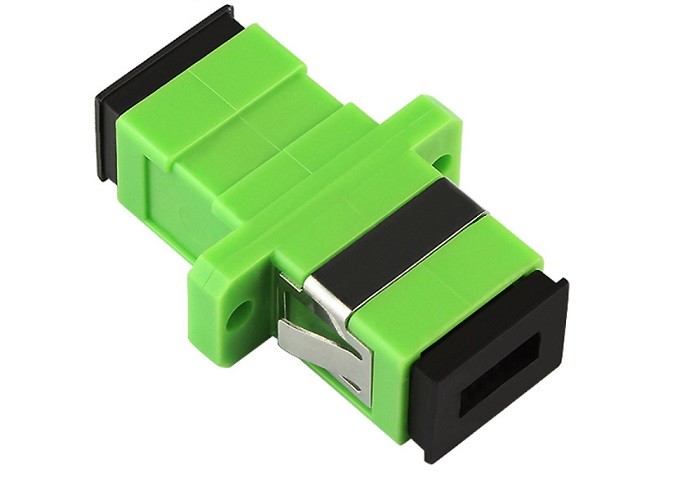

SC APC SX SM Green Color with Metal Clips with Flange Fiber Optic Coupler

Description:

  SC APC SX SM Green Color with Metal Clips with Flange Fiber Optic Coupler can be divided into common silicon-based optical fiber single-mode and multi-mode connectors according to different transmission media, as well as other optical fiber connectors such as plastics as transmission media; according to the structure of the connector, it can be divided into: FC, SC, ST, LC, D4, DIN, MU, MT, etc. various forms. Among them, ST connectors are usually used for wiring equipment, such as optical fiber distribution frames, optical modules, etc.; and SC and MT connectors are usually used for network equipment. According to the shape of the fiber end face, it is divided into FC, PC (including SPC or UPC) and APC; according to the number of fiber cores, there are also single-core and multi-core (such as MT-RJ). SC APC SX SM Green Color with Metal Clips with Flange Fiber Optic Coupler are widely used and have many varieties. In the actual application process, they are generally distinguished according to the structure of the optical fiber connector.

Feature:

1. Fiber optic adapter LC
2. Apply for CATV, LAN, Telecom network, test equipment, LC connectors
3. Multimode or Single Mode, OM3,OM4 available
4. Quad
5. Ceramic sleeve, ABS housing
6. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (pc), ≥ 60dB (apc)
7. Operating temp.: -40° C~+85° C
8. Standard plugging force: 2~6N
9. Durability > 1000 times
10. Color: Blue (pc/SM), Green (apc), Beige (pc/MM), Acid blue (OM3), Purple(OM4)

Specification:
