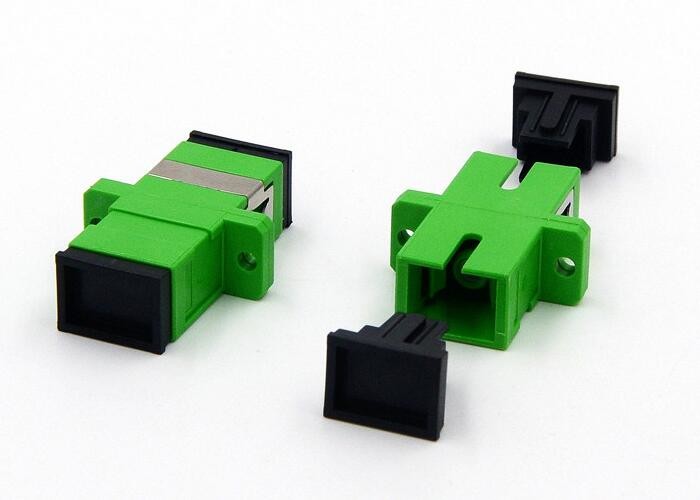

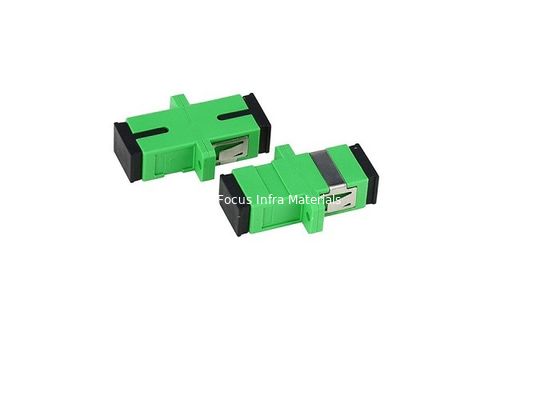

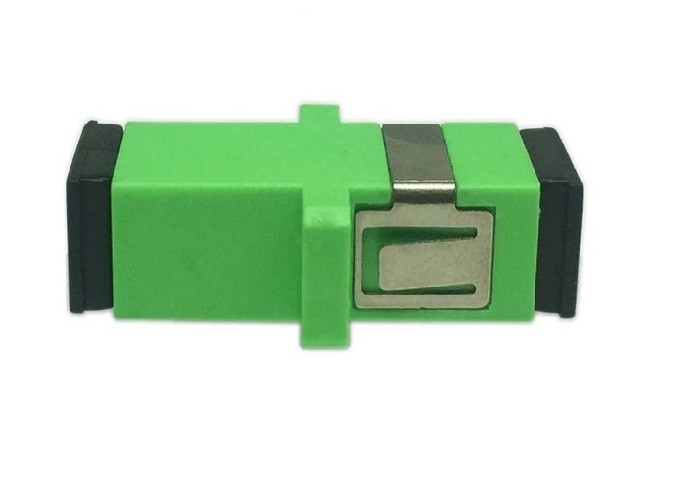

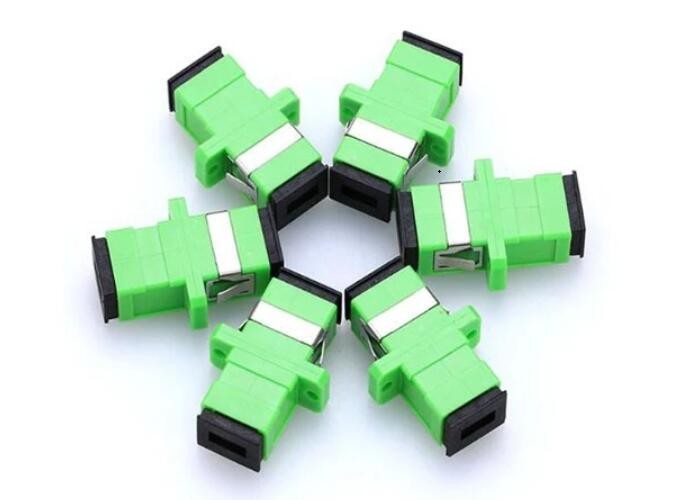

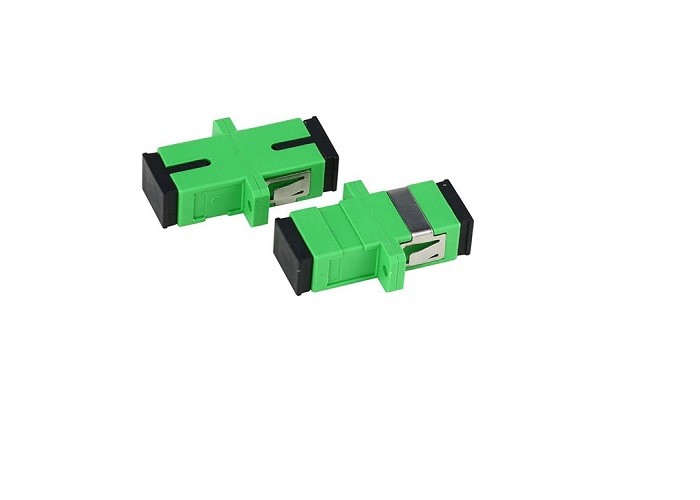

SC APC Simplex SM with Metal Clips with Flange Fiber Optic Adapter

SC APC Simplex SM with Metal Clips with Flange Fiber Optic Adapter

Description:

  Optical fiber connectors are the most widely used optical passive components in optical fiber communication systems. The optical fibers are connected by the adapter through the internal open sleeve to ensure the highest connection performance between the optical fiber connectors. In order to be fixed on various panels, a variety of fine fixing flanges are also designed.

  Both ends of the conversion adapter can be connected to fiber optic connectors of different interface types, and provide a connection between the APC end faces. Double or multiple adapters can increase the installation density and save space.

  "APC" means polishing at an oblique 8 degree angle. The "APC" model is most commonly used in radio and television and early CATV. Its pigtail head adopts an angled end face, which can improve the quality of the TV signal. The main reason is the TV signal. It is analog light modulation. When the coupling surface of the connector is vertical, the reflected light returns along the original path. Since the unevenness of the refractive index distribution of the fiber will return to the coupling surface again, although the energy is small at this time, the analog signal cannot completely eliminate the noise, so it is equivalent to superimposing a weak signal with time delay on the original clear signal. It is ghosting on the screen. The inclination of the pigtail headband can prevent the reflected light from returning along the original path. Generally, digital signals do not have this problem.

Features:

1. Low insertional loss and back reflection loss

2. High prcision alignment

3. Nickel plated brass body

4. Use in Single-mode or Multimode applications

5 .Choice of housing material and sleeve material

6. ISO9001:2008,ROHS compliance

Specification:
