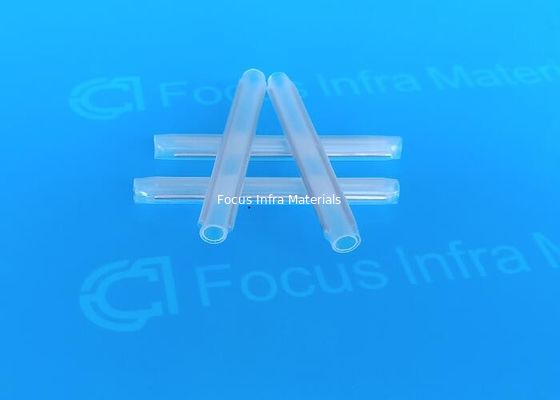

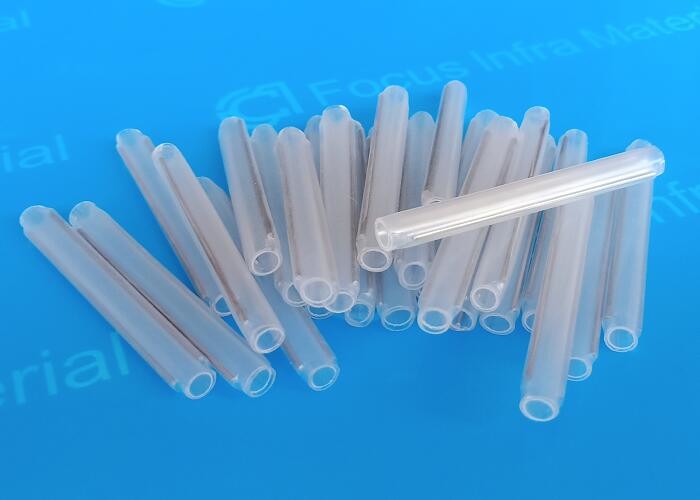

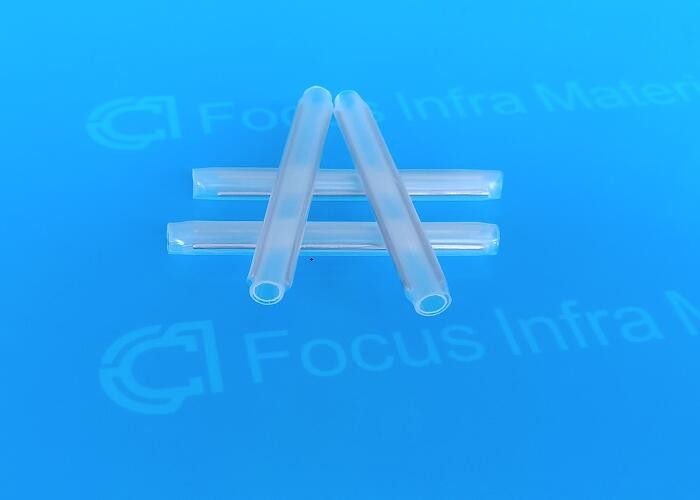

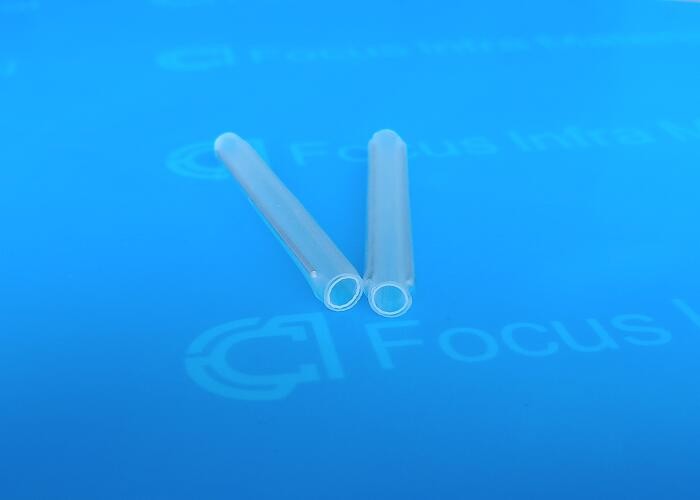

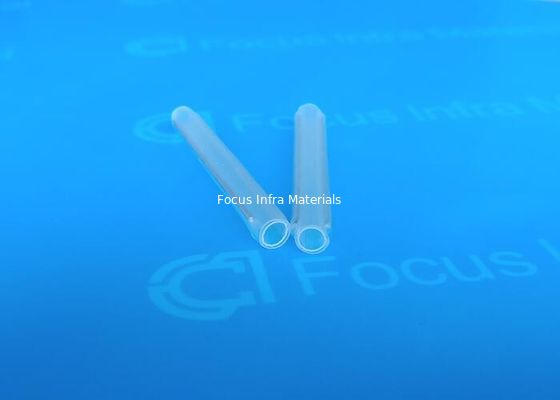

50mm Fusion Splice Protection Sleeve Clear Fiber Optic Heat Shrink

50mm Double Steel Rod Drop Cable Joint Protect FTTH Fiber Cable Joint Sleeve

Description:

  50mm Double Steel Rod Drop Cable Joint Protect FTTH Fiber Cable Joint Sleeve is used to protect the FTTH Drop Cable ( Both Round Cable and Flat Cable). The construction of the three protective and strengthening elements of the FTTH Fiber Cable Joint Sleeve is distinctive in the function that each provides. 50mm Double Steel Rod Drop Cable Joint Protect FTTH Fiber Cable Joint Sleeve provide mechanical and environmental protection for FTTH Drop Cable Joint Connection.

   When we use the Drop Cable Joint Protect FTTH Fiber Cable Joint Sleeve, there’re some stepes to follow.

   First, slide the Drop Cable Joint Protect FTTH Fiber Cable Joint Sleeve onto the optical fiber cable.

   Then weld the two optical fiber cables.

   After the welding is completed, slide the Drop Cable Joint Protect FTTH Fiber Cable Joint Sleeve onto the fiber cable connection point and cover the connect point and the exposed optical fiber.

  Put the Drop Cable Joint Protect FTTH Fiber Cable Joint Sleeve into the protective sleeve oven built in the welding machine.

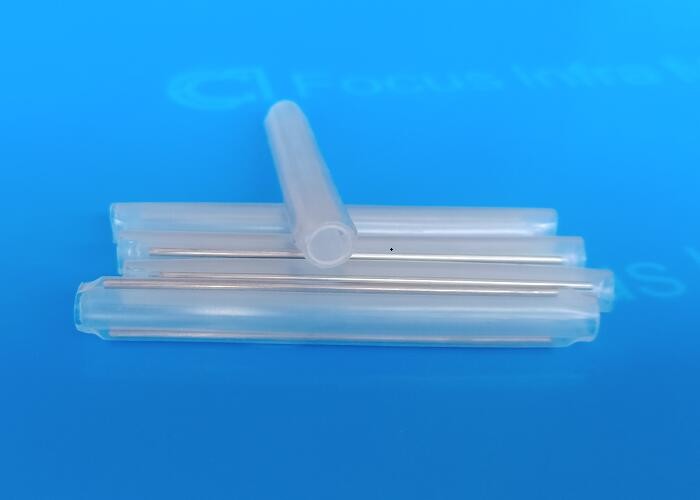

  There, the Drop Cable Joint Protect FTTH Fiber Cable Joint Sleeve is heated to melt and contract around the joint. Because the Drop Cable Joint Protect FTTH Fiber Cable Joint Sleeve has steel rods, a mechanical protection is formed to prevent the fiber from bending. The contraction of the tube around the optical fiber also forms an environmental protection to keep the element away from the connector.

Features:

1. Fits into most splice holders

2. Quick shrink-down time

3. Low temperature hot-melt adhesive encapsulates the splice

4. Provide mechanical and environmental protection for fusion splices

5. Optimal design for simple and correct fiber entrance

6. Hot melt adhesive especially developed for optimal flow

7. Transparent heat shrinkable tube for simple installation verification

8. Short installation cycle and compatible with most common ovens

Technical Parameters:
