1.2*45MM Fiber Optic Splice Sleeves FTTH Fiber Protection

Place of Origin China
Brand Name Focus Infra or OEM
Model Number 1.2*45MM
Minimum Order Quantity 50000pcs
Price Negotiable
Packaging Details 100pcs/bag
Delivery Time 15 days
Payment Terms T/T
Supply Ability 3000000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 45mm 1.0 Stainless Steel Rod Fiber Optic Splice Sleeves Use Single Fiber Splice Protection
Brand Focus Infra Or OEM Material Heat Shrink Tube, Stainless Steel Rod, Fusion Tube
Application FTTH/FTTX/FTTB Network Length 45mm
Diamter Of Steel Rod 1.0mm Diamter Of After Shrink 2.5mm
Outer Tube Materials PE Inner Tube Materials EVA
Color Clear Operating Temperation -45°C To +120°C
Place Of Origin China Pack 100pcs/bag Or Negotiable
High Light

1.2*45MM Fiber Optic Splice Sleeves

,

FTTH fiber protection sleeve

,

1.2*45MM fiber protection sleeve

Leave a Message
Product Description

45mm Length FTTH Application Single Fiber Protection Fiber Optic Splice Sleeves





Description:



 Fiber Optic Splice Sleeve was developed to protect and strengthen fusion splices on fiber optic cables. The Fiber Optic Splice Sleeve intends to protect (mechanically) fiber optic splices. The Fiber Optic Splice Sleeve is built from shrinkable plastic tube with metal cylinder inside. The fibers are inserted before splicing into the plastic tube. After making the splice, the shrinkable tube is heated and shrunk on the splice. It can protect the spliced fiber from being break down and unwanted bending and is coated with the plastic tube. It gives to the installer flexibility while using the spliced fibers during installation.

 The Fiber Optic Splice Sleeve is fitted to the sleeve holders that are generally exist in fiber optic trays.





Product advantages:



1. Specially designed by the cross-linked polyolefin, hot melt tube and enhanced stainless steel wire optical fiber splice protection devices, does not affect the fiber optic light guide features.

2. Bare fiber hot melt, stainless steel needle, protect fiber

3. Industrial sealing treatment at both ends of the tube to keep the steel needle from falling out

4. Selected 304 high-quality stainless steel, not easy to rust, corrosion-resistant, and anti-aging

5. The double-layer shell is made of environmentally friendly PE and has a long service life

6. Better protection of bare fiber and prolong the service life of fiber





Technical Parameters:

Specification

Test method

Typical data

Tensile strength(MPa)

ASTM D 2671

18

Elongation at Break (%)

ASTM D 2671

700

Density(g/cm2)

ISO R1183D

0.94

Dielectric strength (KV/mm)

IEC 243

20

Permittivity

IEC 243

2.5

Length rate of change (%)

ASTM D 2671

+5

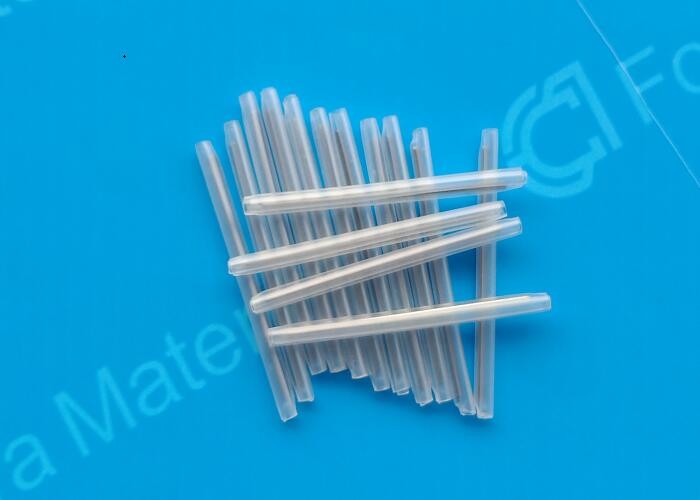

1.2*45MM Fiber Optic Splice Sleeves FTTH Fiber Protection 0

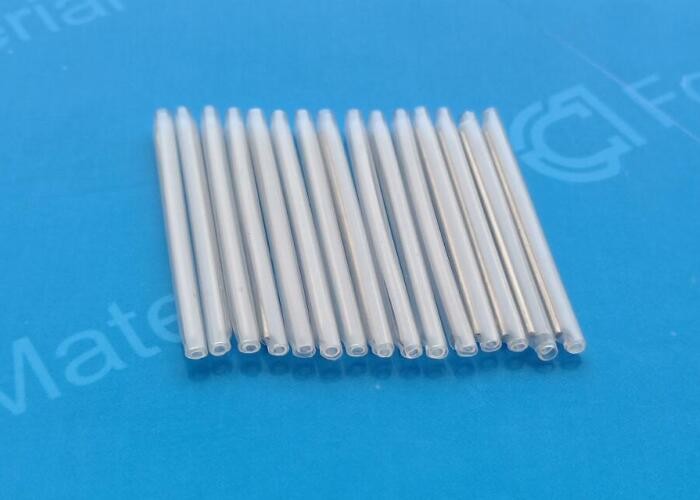

1.2*45MM Fiber Optic Splice Sleeves FTTH Fiber Protection 1

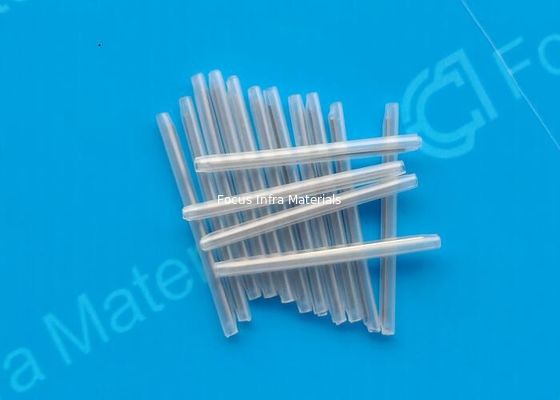

1.2*45MM Fiber Optic Splice Sleeves FTTH Fiber Protection 2
